| ชื่อแบรนด์: | HongCe |
| เลขรุ่น: | GW-2 |
| MOQ: | 1 ชุด |
| ราคา: | สามารถต่อรองได้ |
| เงื่อนไขการจ่ายเงิน: | ที/ที,แอล/C |
| ความสามารถในการจําหน่าย: | 10 ชุดต่อเดือน |

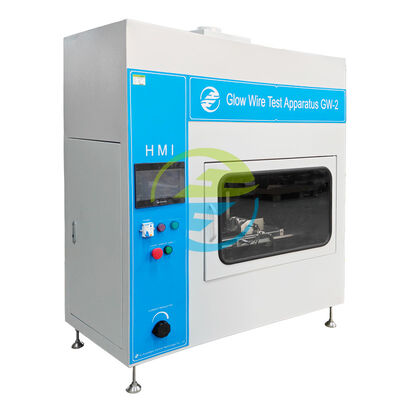

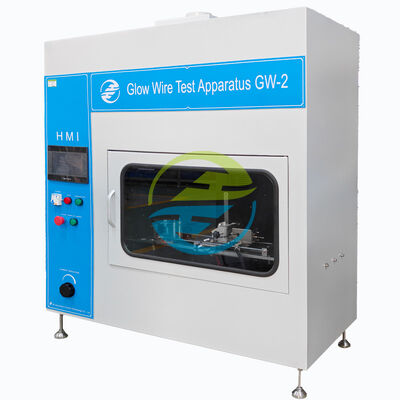

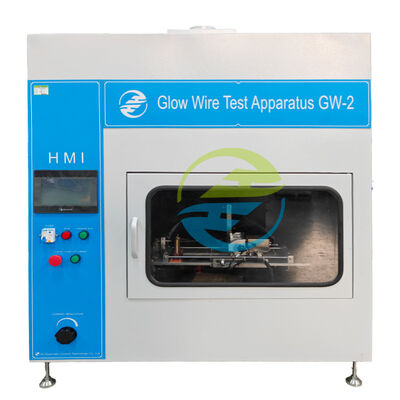

| Parameter | GW-2 (Touch Screen) |
|---|---|
| Working Voltage | 220V / 50Hz |
| Control Operation Mode | PLC control, 7-inch color touch screen with infrared remote control |
| Glowing Filament | Ф4mm ± 0.04mm (>77% Ni/20±1% Cr) special standard ring shape, horizontal standing |
| Specimen Pressure | 0.95N ± 0.1N |
| Maximum Heating Depth | 7mm ± 0.5mm |
| Specimen Movement Speed | 10mm/s – 25mm/s |
| Temperature Calibration | Calibration temperature: 960°±10°C, hot wire electric heating |
| Thermocouple | RS imported 1mm armour nickel-chromium/nickel/aluminum K-Thermocouple, temperature resistance 1100° |
| Silver Foil | Purity 99.8%, area: 2m², thickness: 0.06mm |
| Tray | Silk paper (12-30g/m³) on 10mm thick pine board, 200±5mm below test sample |
| Test Chamber | >0.5 cubic meter, black background, background illuminance ≤20Lx, with exhaust fan |
| Testing Time | 30s ± 1s |
| Test Procedure | Automated sample movement, automatic return after 7mm penetration |
| Lighting | Equipped with controlled lighting in test chamber |
| Dimensions & Weight | 1100×550×1200mm, 140kg |
